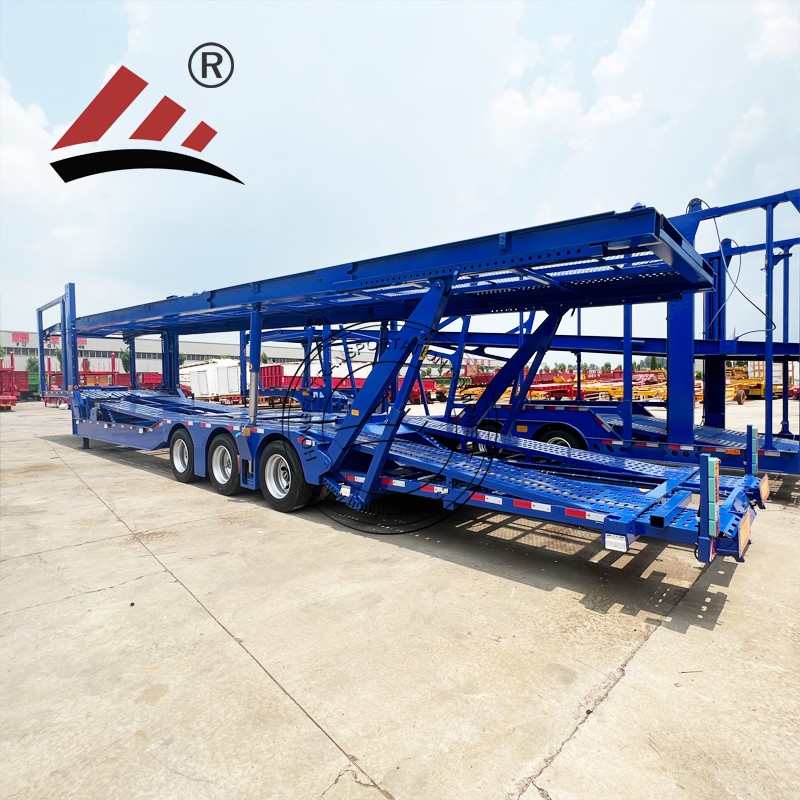

3 axles container transporting car carrier semi trailer
LIANGSHAN HONGFU TRANSPORTATION EQUIPMENT CO.,LTD,is the TOP China CAR CARRIER Trailer manufacturer with brand“JUYUN BRAND”.For transportingcars ,SUVs,pick-up and other kinds of auto mobile,we provide different kinds of car carrier trailer.
Car carrier semi trailer:
Features:
1.The trailer can be galvanized or painting for surface rust-proof.
2.The lifting system can be screw or hydraulic cylinder optional.
3.We can design the car carrier trailer to transport 4-32 units cars according to the different car size.
4.The shape can be frame type or enclosed type
5.Axles number can be 1,2,3,4 axles or superlink center axles for transporting quantity cars.
Axles brand can be BPW,SAF or FUWA brand optional.
6.Double floor optional for transporting cars.
7.More efficient for using the trailer space.
8.Suspension can be normal leaf springs suspension ,air suspension or bogie suspension.
9.Can be with power pack to control the hydraulic cylinders/screw.
10.With twist lock for container avaliable.
Parameters：
|
Model |
LYZ9310TCL |
|
Size |
18000*2550*3980(mm) |
|
Payload |
28000kgs |
|
Usage |
Transporting 8 units cars |
|
Axles |
3 * 13ton capacity (Brand optional) |
|
ABS |
WABCO |
|
Suspension |
Air suspension optional/leaf spring optional |
|
Tire |
11R22.5 / 245/70R17.5 12pcs(Other size optional) |
|
Rim |
12pcs (Other size optional) |
|
Kin pin |
2’’bolt type |
|
Landing gear |
28 Ton two speed |
|
Braking system |
Double air chamber ,brake valve,32L air tanks ;ABS optional |
|
Electrical |
LED light , 7 ways/15 ways ,24V |
|
Painting |
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting Or zinc plated |
Above data can be customized per your local regulation and requirement.
Details：
Manufacturing process
hydraulic cylinder for lifting

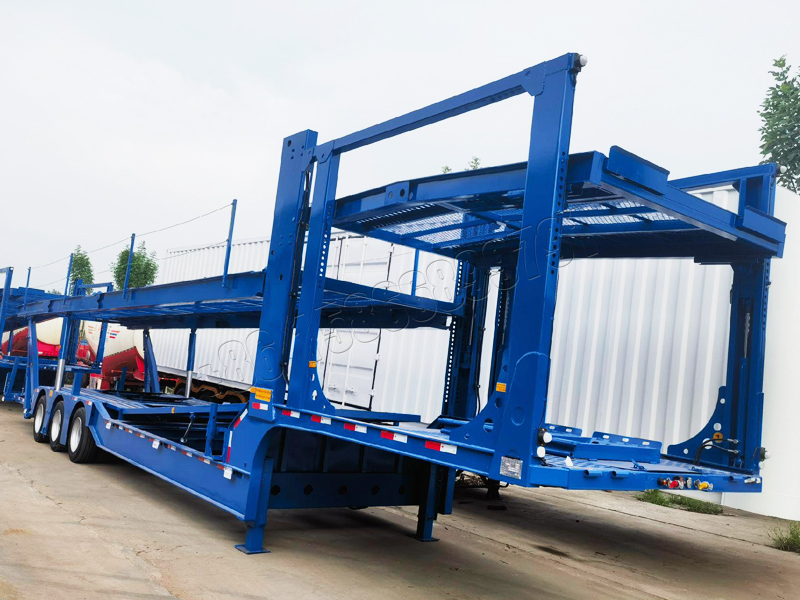

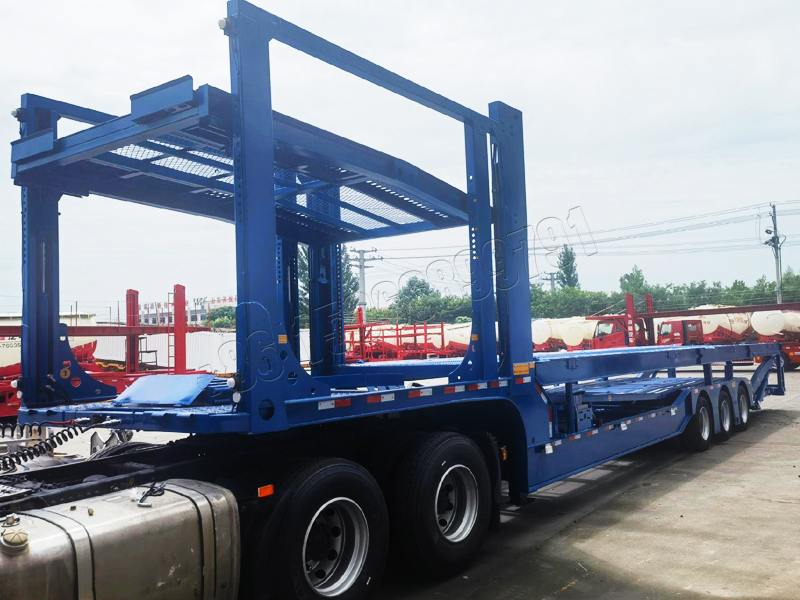

2nd floor lifting for 40ft containers
